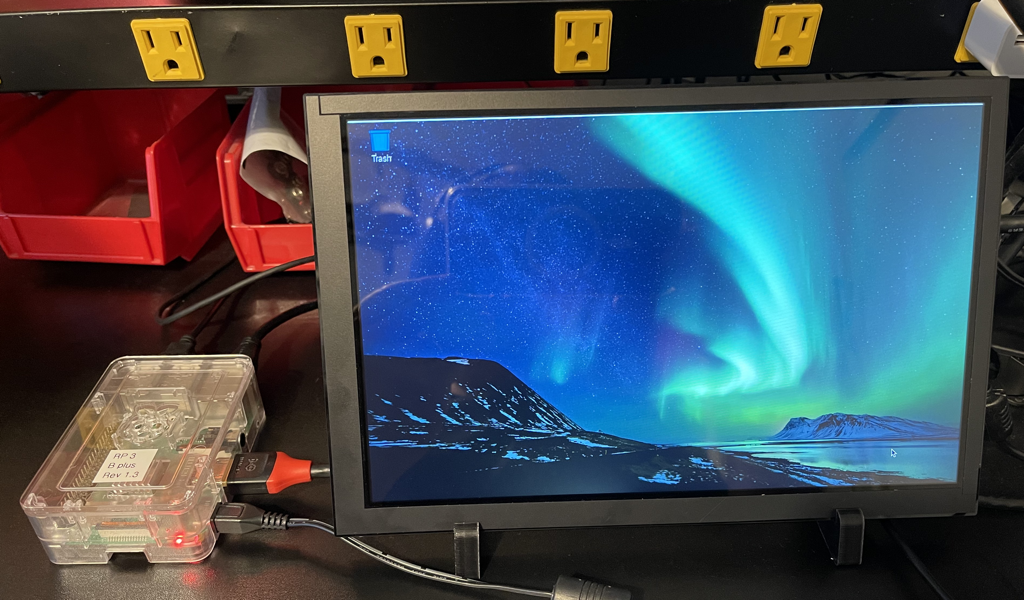

Setting up an APROTII 10.1″ 1280×800 LCD Touchscreen for Raspberry Pi

Alex Alex
August 12, 2022
Comments closed

To setup the https://www.amazon.com/dp/B0B2JP32Y6?ref=ppx_yo2ov_dt_b_product_details&th=1 follow these directions:

  1. Replace the included cable with one of higher quality
  2. Connect a USB port to “TOUCH” using the included cable, do not plug anything into “POWER”
  3. Append these three lines to /boot/config.txt using nano or other text editor:
hdmi_cvt=1280 800 60 3
hdmi_group=2
hdmi_mode=87

Categories:Raspberry Pi
